Upper Cantilever Single-screen Operation Console

Product > Upper Cantilever Single/Dual-screen Operation Console > Upper Cantilever Single-screen Operation Console > CPS-5122P
CPS-5122P
CPS-5122P

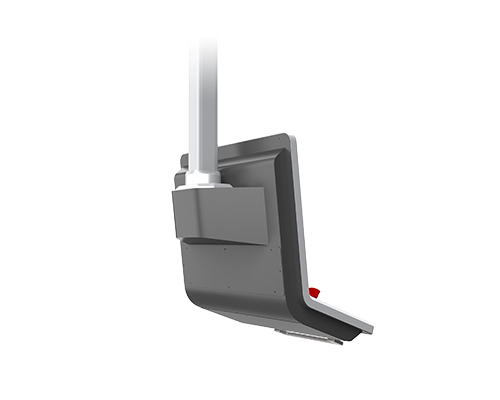

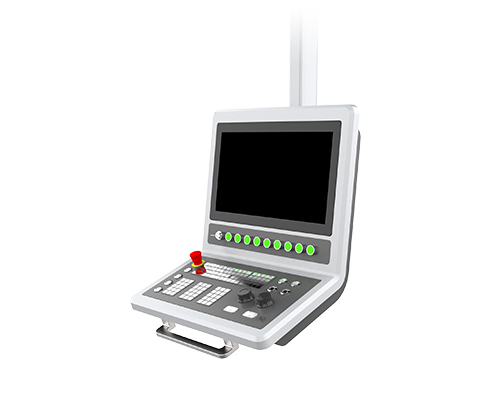

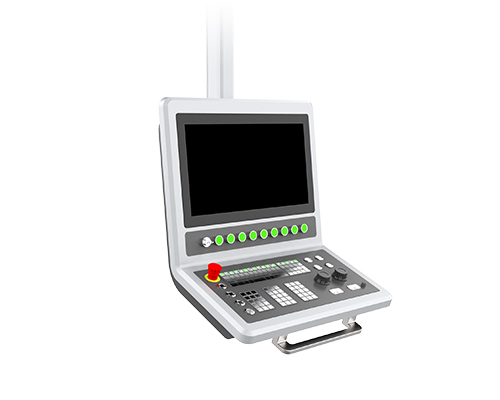

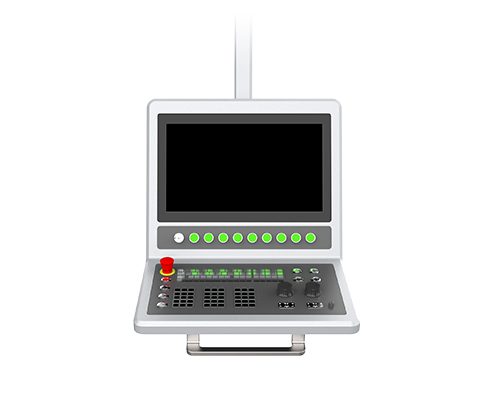

CPS-5122P is an upper cantilever single-screen operation console equipped with a 21.5-inch high-definition LCD screen with a resolution of 1920×1080 and a projected multi-point capacitive touch screen. It supports three signal transmission interfaces (HDMI, DVI, DP) and multiple USB interface expansions. The single-screen console can be integrated with an operation panel with a cutout size of 495mm×231mm. The maximum communication distance between a PC and the single-screen console can reach 15 meters. The whole machine is powered by DC24V, the front panel has an IP65 protection grade, all interfaces adopt a secure design, and it has passed CE/FCC certification, making it suitable for harsh industrial sites with human-machine interaction.
Product manual（PDF） Technical data Ordering information

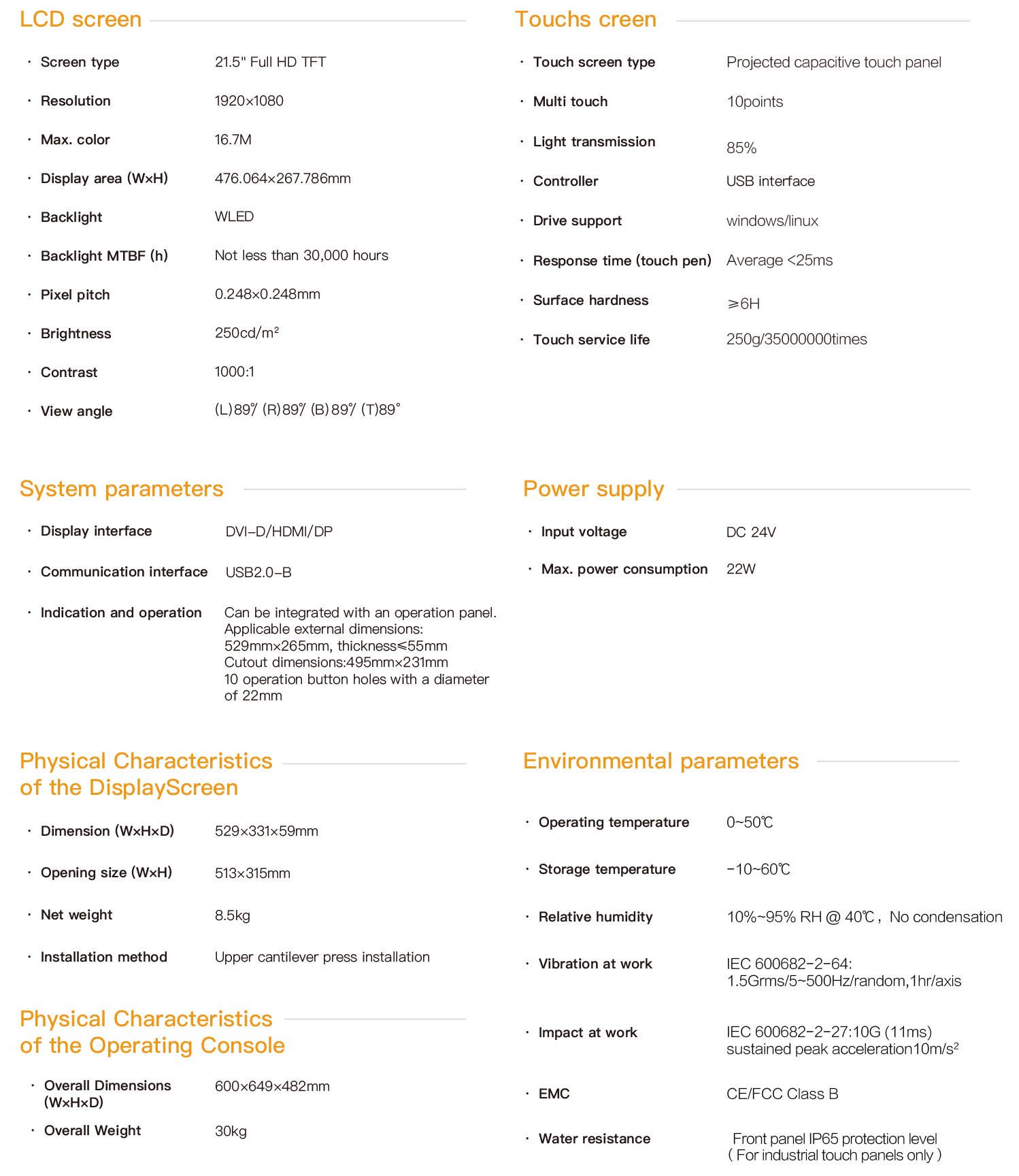

Product detailed specifications（CPS-5122P)
