Lower Cantilever Single-screen Operation Console

Product > Lower Cantilever Single/Dual-screen Operation Console > Lower Cantilever Single-screen Operation Console > CPX-4122P
CPX-4122P
CPX-4122P

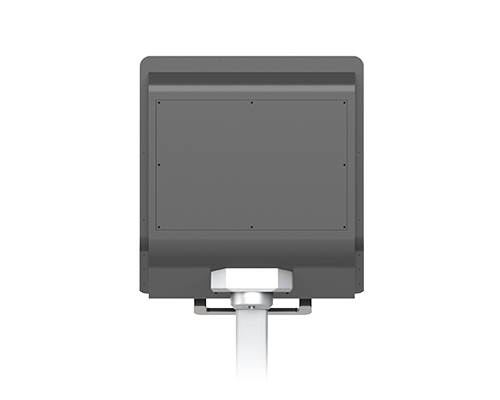

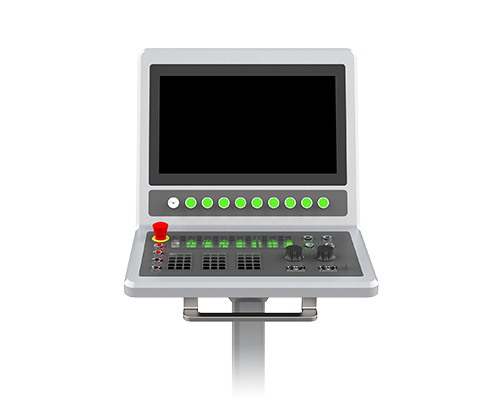

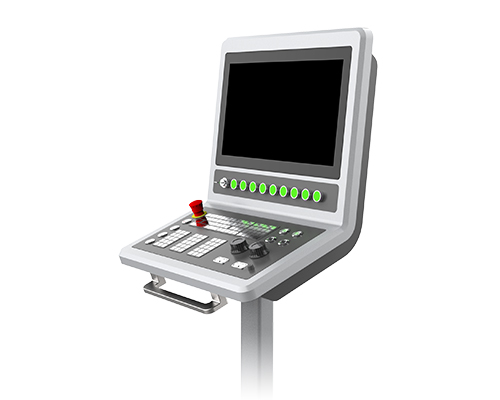

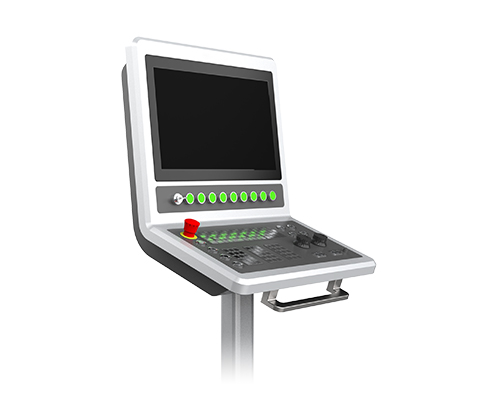

CPX-4122P is a lower cantilever single-screen operation console, equipped with a 21.5-inch high-definition LCD screen with a resolution of 1920×1080 and a projected multi-point capacitive touch screen. It supports three signal transmission interfaces including HDMI, DVI and DP, as well as multiple USB interface expansions. The single-screen console can be integrated with an operation panel with a cutout size of 495mm×231mm. The maximum communication distance between a PC and the single-screen console can reach 15 meters. The whole unit is powered by DC24V, the front panel features an IP65 protection grade, all interfaces adopt a secure design and have passed CE/FCC certification, making it suitable for harsh industrial sites with human-machine interaction
Product manual（PDF） Technical data Ordering information

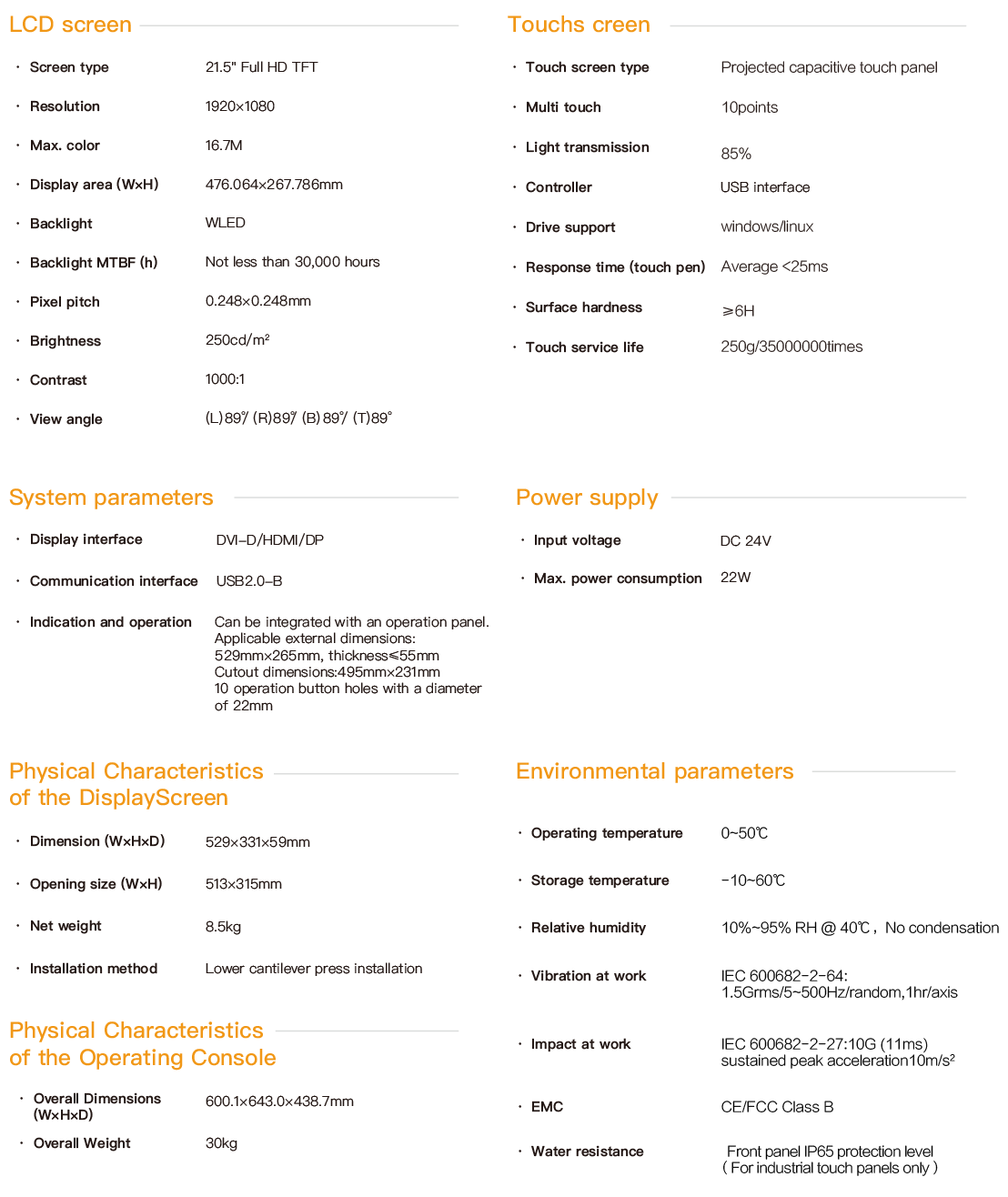

Product detailed specifications（CPX-4122P)
