Lower Cantilever Dual-screen Operation Console

Product > Lower Cantilever Single/Dual-screen Operation Console > Lower Cantilever Dual-screen Operation Console > CPX-4222P
CPX-4222P
CPX-4222P

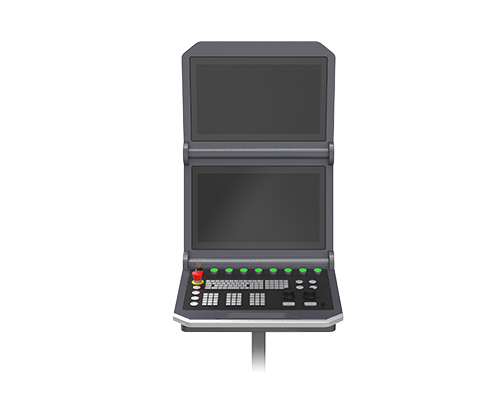

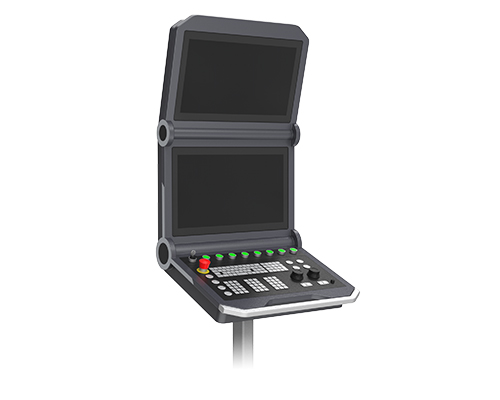

CPX-4222 is a lower cantilever dual-screen operation console, equipped with two (upper and lower) 21.5-inch high-definition LCD screens with a resolution of 1920×1080 and projected multi-point capacitive touch screens. It supports three signal transmission interfaces including HDMI, DVI and DP, as well as multiple USB interface expansions. The lower cantilever dual-screen operation console can be integrated with an operation panel with a cutout size of 495mm×231mm and an industrial keyboard with a cutout size of 385mm×140mm. The maximum communication distance between a PC and the lower cantilever dual-screen operation console can reach 15 meters. The whole unit is powered by DC24V, the front panel has an IP65 protection grade, all interfaces adopt a secure design and have passed CE/FCC certification, making it suitable for harsh industrial sites with human-machine interaction
Product manual（PDF） Technical data Ordering information

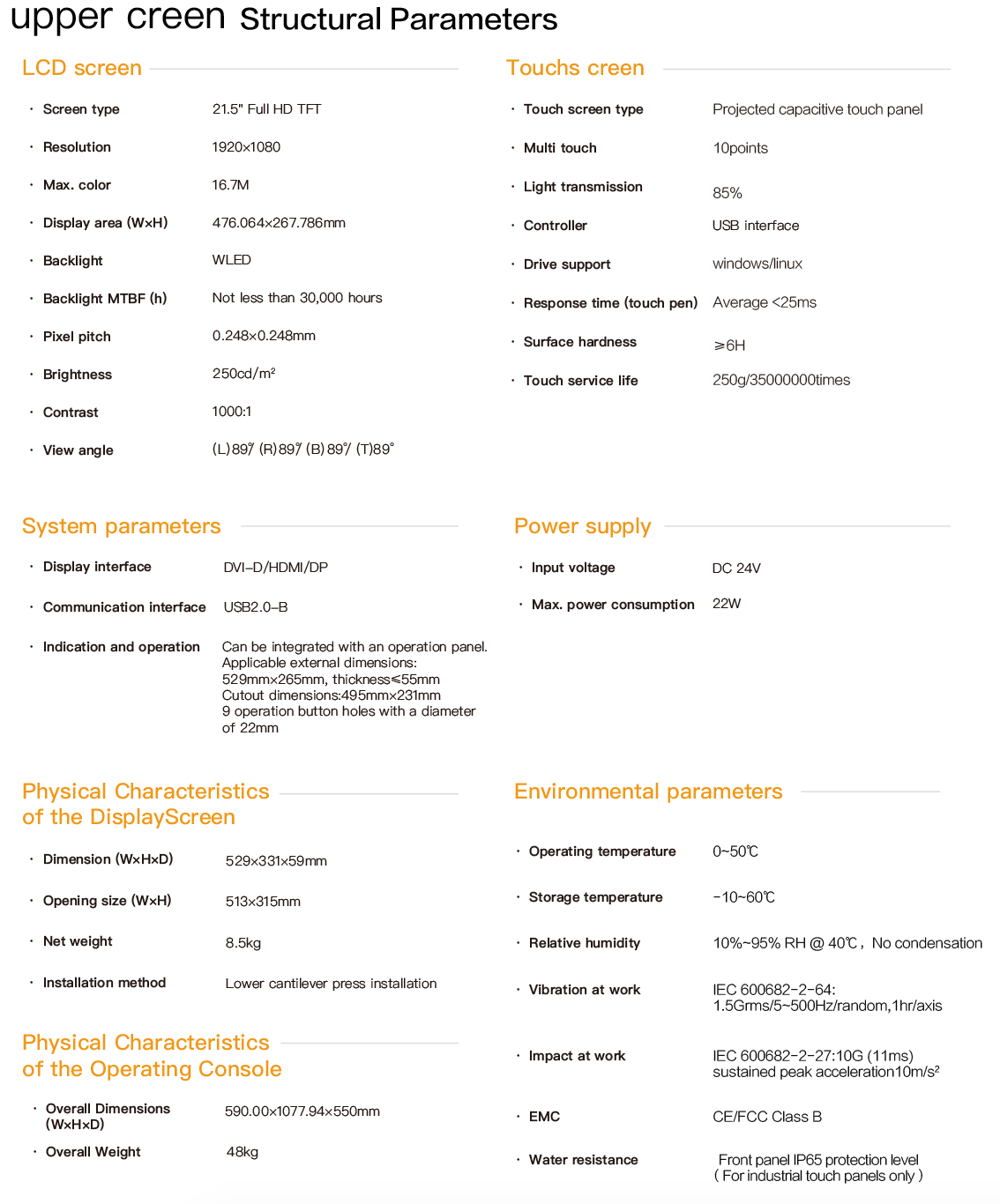

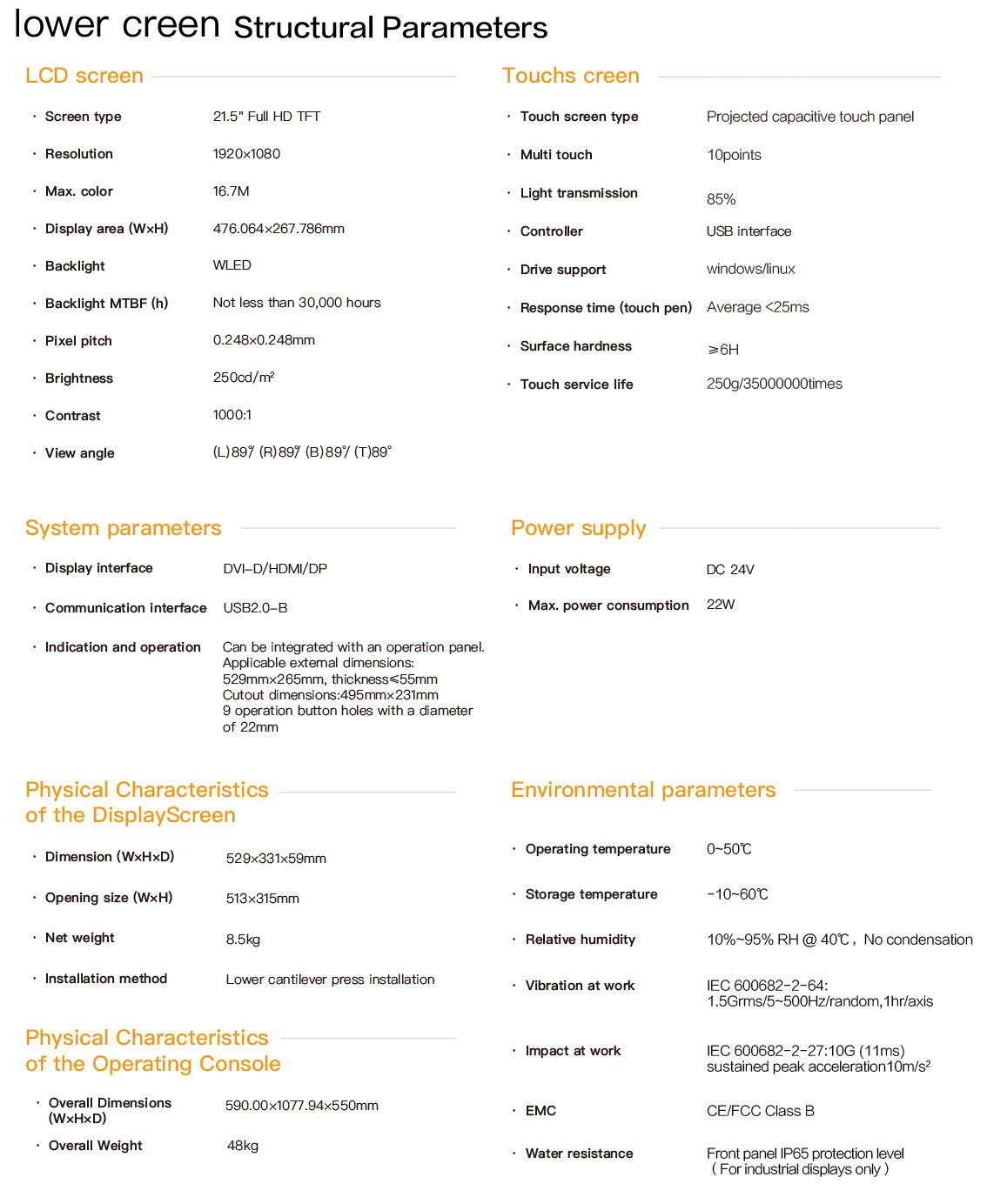

Product detailed specifications（CPX-4222P)
